METAL SHARK® BIG
- Sturdy aluminium design – particularly robust and weatherproof with short metal-free zone
- Ideal protection for hackers and OSB flakers
- High search performance and noise immunity through 4-quadrant technology, even better with Power Drive option
- Maintenance-free: automatic calibration and automatic balance control
- Easy installation and intuitive operation
- Remote control and remote maintenance (option SHARKNET®) with documentation of all settings, metal messages etc.
Features
- Sturdy aluminum design
- Rugged and weatherproof with short metal-free zone
- Optimal protection for wood choppers, shredders, chippers and OSB flakers
- Highest search performance and noise immunity 4-quadrant technology, Power Drive (booster) option
- Maintenance-free Automatic calibration and automatic balance control
- Easy installation and intuitive operation
- Remote control and remote maintenance (SHARKNET® option) with documentation of all settings, metal detection alerts, etc.
Function
The METAL SHARK® BIG with its rectangular tunnel is specifically designed for large items such as logs, bales and recycled wood.

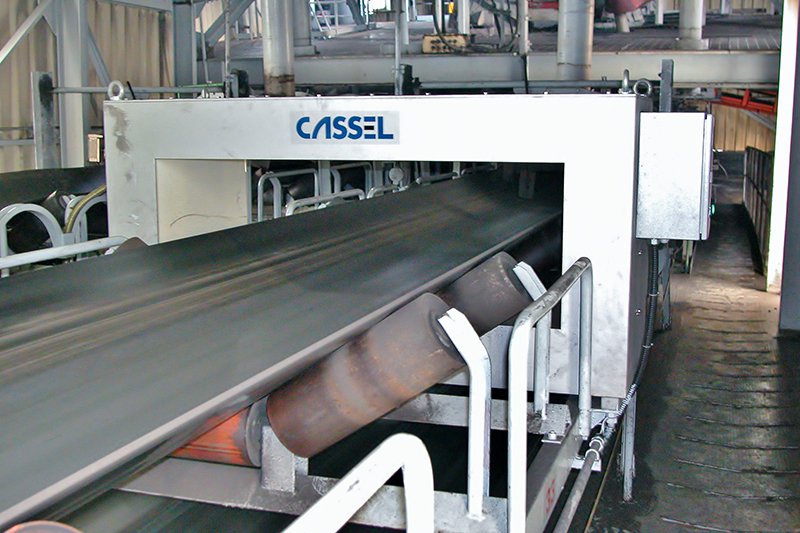

Thanks to its robust design, it is particularly suitable for industrial use on rough terrain commonly found in places such as timber yards. It is typically installed with a flat-belt trough conveyor or with a specially prepared vibrating feeder.
Using 3D detection technology, it detects magnetic and non-magnetic metal contaminants (iron, stainless steel, aluminum etc.) accurately and reliably even in challenging conditions.
Image Gallery
Delivery Scope
- BIG detection unit (sensor)
- Control unit electronic control cabinet with current METAL SHARK® electronics
Application
- Protection of processing machines from metal objects
- Monitoring of large items – particularly well-suited for monitoring tree trunks
- Monitoring of bulk materials such as wood chips
- For use preferably with trough conveyor belts
Specifications
| Model Name/ID | METAL SHARK® BIG |
| Electronics | Digital signal processor, digital frequency generation, digital balance control, automatic calibration, digital noise filters, integrated flexible control functions |
| Input | 2 analog 0 ...10 V DC (option: 4-20 mA) 8 freely configurable 24 V DC signals, e.g. for rotary encoders, product identification, pushbutton |
| Output | 2 floating: “error” and “metal” 8 freely configurable 24 V DC signals, e.g. solenoid valve, visual/acoustic alarm |
| Inspection Method | High-frequency magnetic field, multi-channel operation, balanced receiver coils |
| Metal Detection | Ferrous, non-ferrous (e.g. tombac, brass, aluminium, lead etc.) and stainless steel |
| Product Compensation | 250 memory locations, TeachAssistant |
| Protection Type | IP 65 |
| Ambience | -30°C to +40°C / -22°F to +104°F UL version: -20°C to +40°C / -4°F to +104°F Optional: -40°C / -40°F or +55°C / +131°F Rel. humidity 20% to 90%, non-condensing > 95% relative humidity (condensing) with control unit closed |
| Product Temperature | Up to 70°C / 158°F |
| Power Supply | Single-phase 110-230 V AC +/- 5%, 20 W typical (60 W max.) |
| Interface | RS232, LAN (optional, for SHARKNET ), USB (optional) |
| Maintenance | Maintenance-free, self-calibrating sensors |
| Diagnostics | Integrated diagnostic software, automatic self-test Tunnel |
| Conformity | CE |
Accessories & Extras
- Separate mounting of the control unit (wall mounting, up to 30 m connection cable to the sensor)
- Xenon flashing light
- Acoustic signaling devices
- SHARKNET® for remote control and remote maintenance and data recording
- Power Drive signal amplification for further improved search performance and for particularly challenging operating condition
- Extended temperature range to below -40°C / -40°F
| SHARKNET® | The SHARKNET® software connects METAL SHARK® metal detectors to a central computer, providing central storage of all operating data as well as batch and alert documentation and remote control and remote maintenance via a PC |
| Fast Power Drive (FPD) | Significantly improves metal detection capability and reliability in industrial environments that do not meet electromagnetic compatibility standards. Various IP protection classes available, ATEX Zone 22 version optionally available |
| Temperature extension (cold) | Temperature range extended to -40°C / -40°F Resin seals remain elastic at very low temperatures. Special insulation, heated enclosure and other features |
| Temperature extension (hot) | Temperature range extended to +55°C / +131°F Adapted enclosure, additional thermal insulation, heat exchanger and/or active cooling units |
| Flashing light, XENON | Very bright and eye-catching alarm light, 24 V DC, IP 65, RB 10-100 V, 2 W, suitable for mounting on stand or wall mounting |
| Alarm horn | Emits a very loud alarm sound, 24 V DC Suitable for mounting on stand or wall mounting |
| Flashing light + horn on stand | Acoustic and visual alarm on stand, stainless steel, with bright red Xenon flashing light and horn for conveyor mounting |
