Checkweigher Teltek C80
High precision, high speed! C80 is Teltek’s most advanced checkweigher. It enables you to use up to four weighing systems controlled by a mutual software. With this checkweigher solution, you can perform multi-line weighing (up to 4) with maximal overview and control. Teltek C80 checkweigher can be connected with filling machines and detection equipment. It supports data collection and can generate advanced statistics of production performance.
Features
- Checkweigher for 500 ppm speed combined with high accuracy
- Easy-to-use with settings for tare, upper and lower weight limits (TU2, TU1 TO1, TO2) and conveyor speed
- PC based Windows™ operating system with options for wired or wireless data transfer
- Production reports in Microsoft Excel™ or as Adobe PDF™
- Controls up to four weighing units
- Stainless steel, IP66 with conveyors driven by maintenance free brushless DC motors
- MID homologation, CE certification
- Several reject devices including Air Blast, Pusher, Single or Double Flipper/Divert Arm and Drop Flap
- Several belt dimensions available, customized to your application

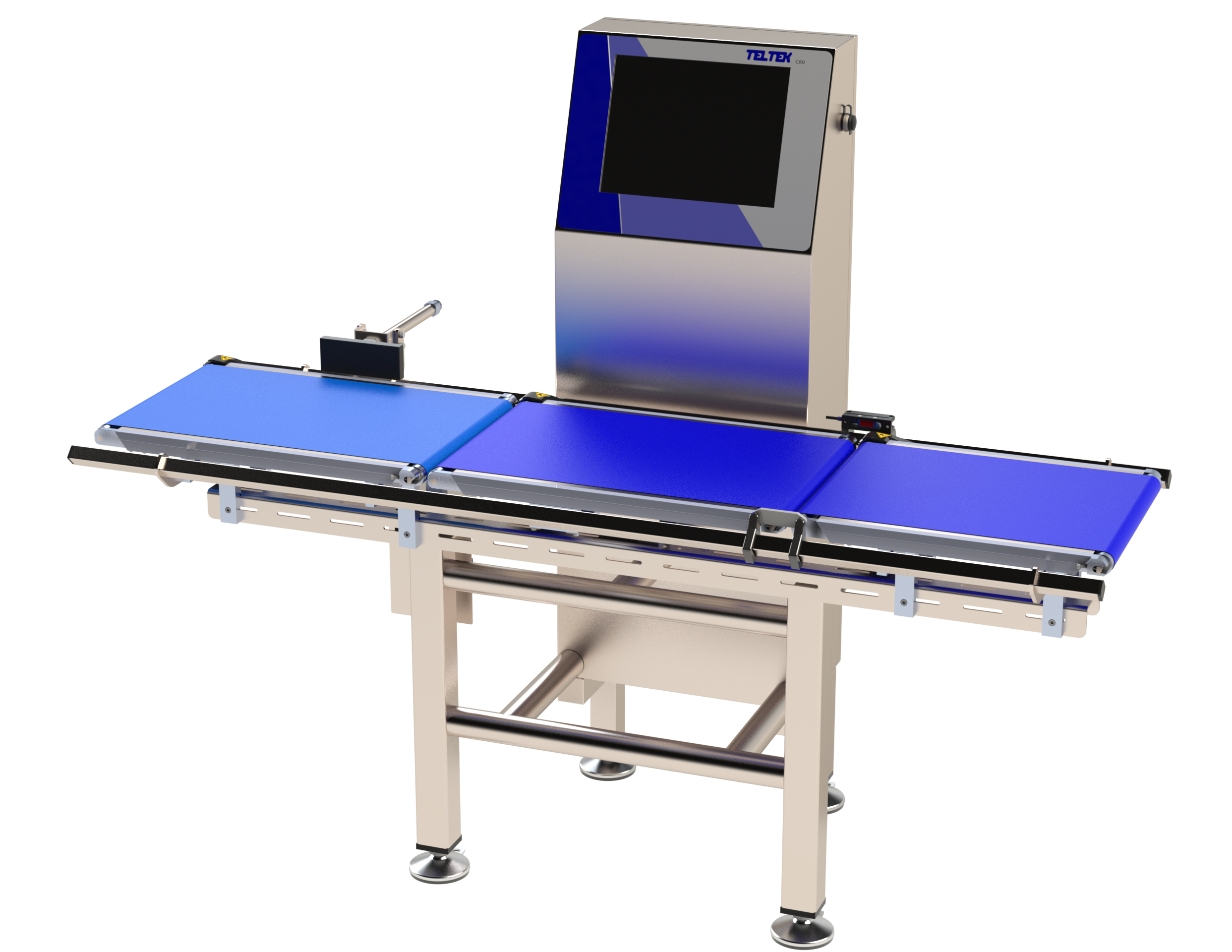

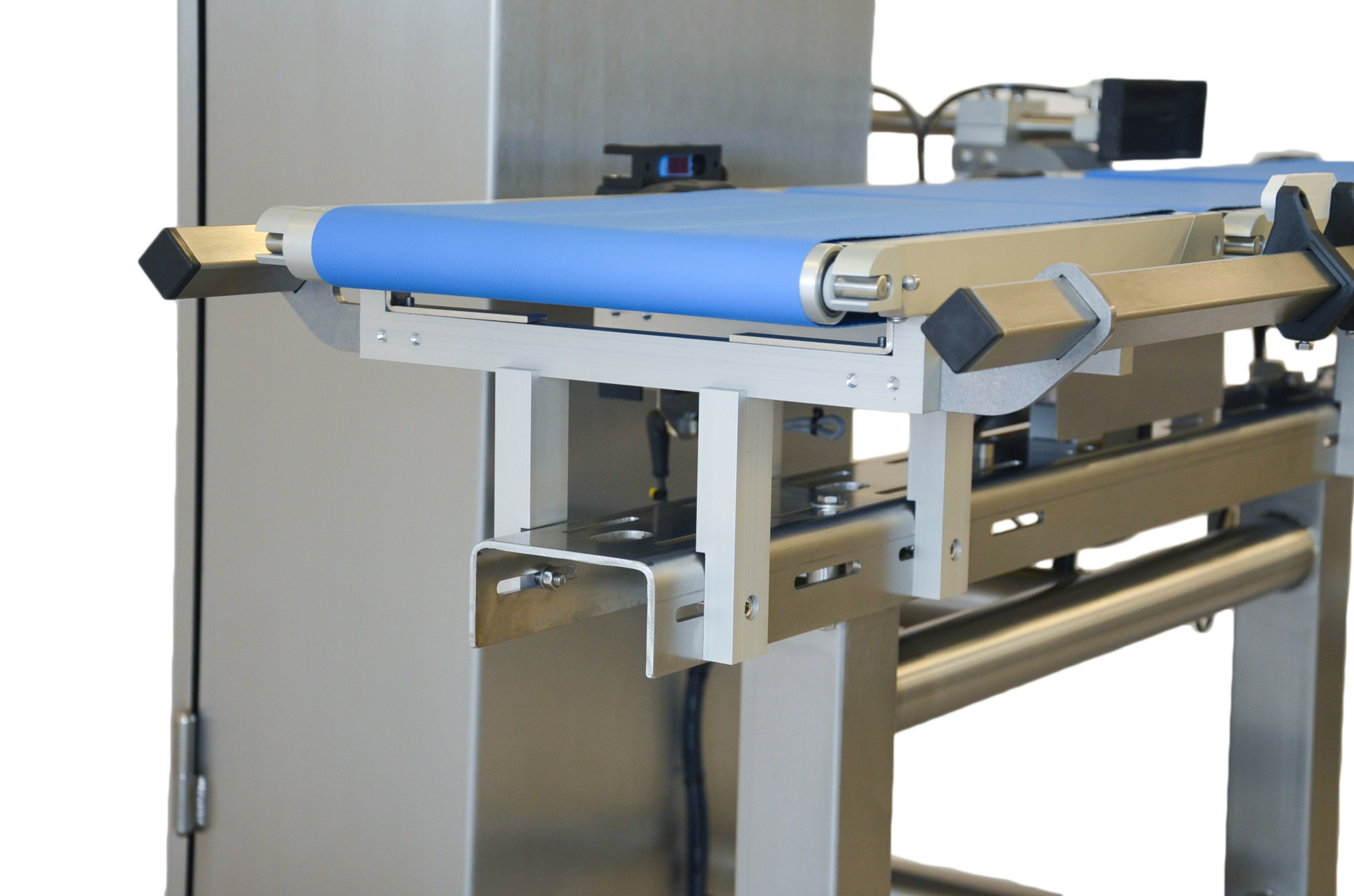

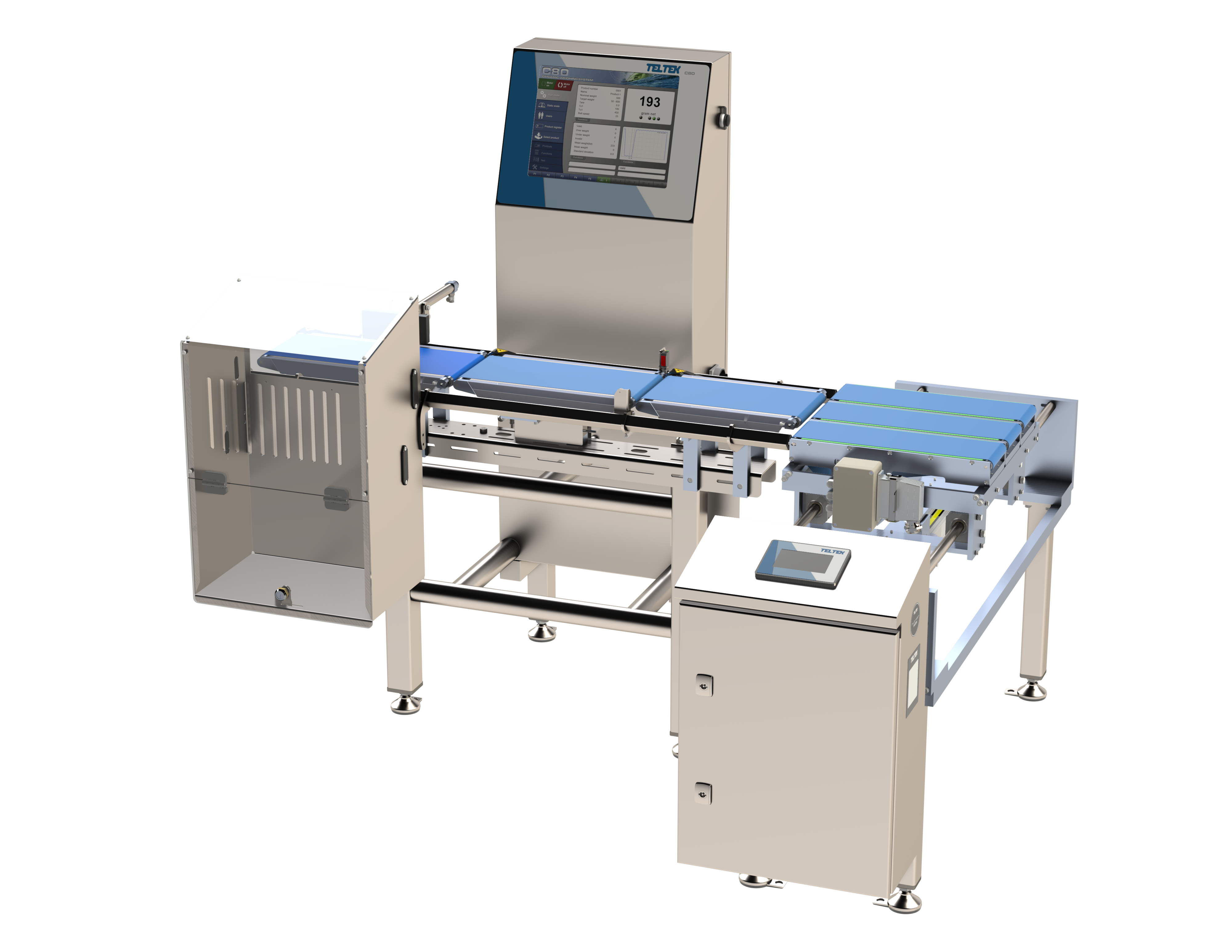

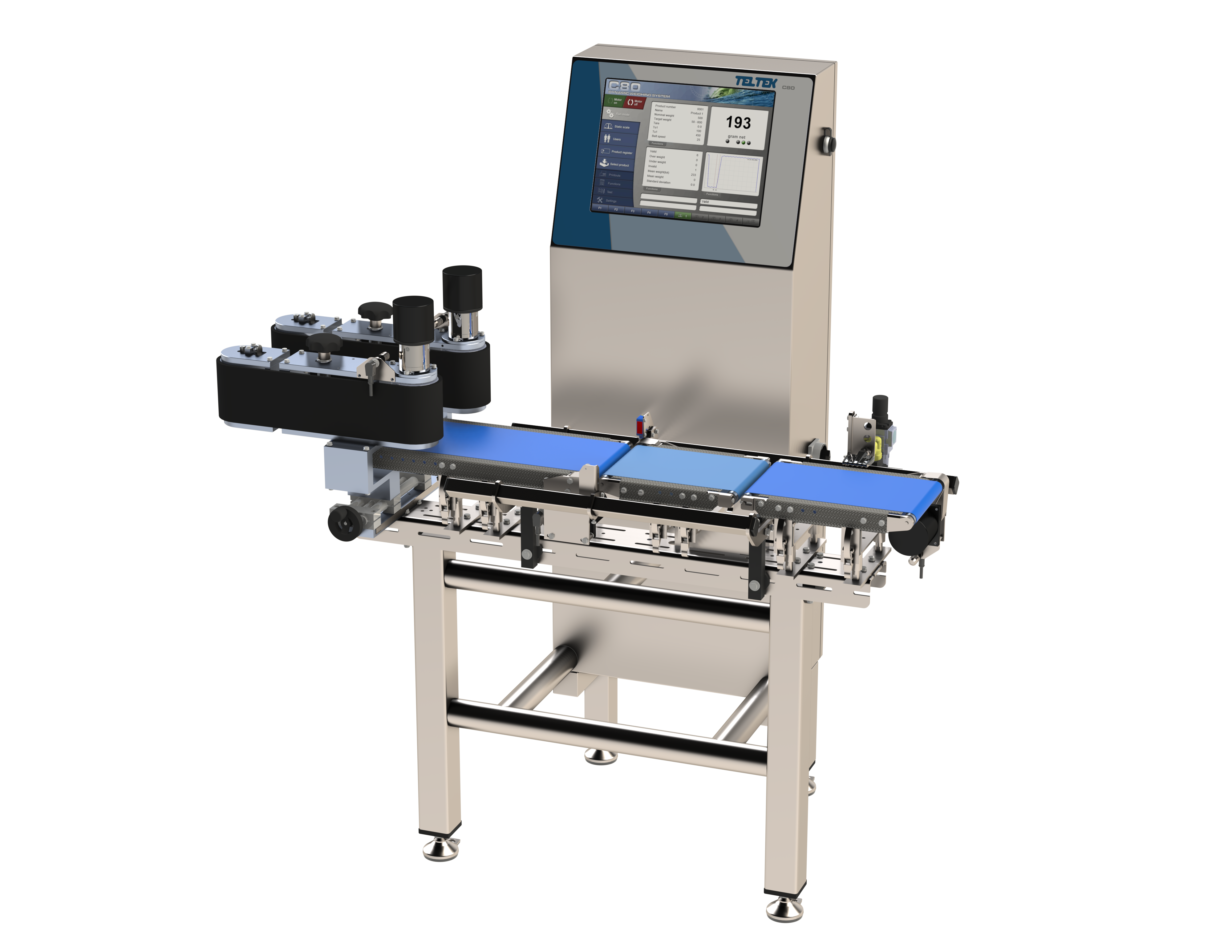

Image Gallery
Specifications
| Model Name/ID | C80-S3 | C80-H6 | C80-H12 | C80-B20 | C80-B40 |
| Maximum Belt Speed | 75 m/min | 35 m/min | 25 m/min | 25 m/min | 15 m/min |
| Maximum Product Length | Weighing conveyor -150 mm. | Weighing conveyor -150 mm. | Weighing conveyor -150 mm. | Weighing conveyor -150 mm. | Weighing conveyor -150 mm. |
| Maximum Product Weight | 15 g to 3,000 g (weight range adapted to actual product weights) | 600 g to 6,000 g (weight range adapted to actual product weights) | 1,500 g to 12,000 g (weight range adapted to actual product weights) | 3,000 g to 20,000 g (weight range adapted to actual product weights) | 3,000 g to 40,000 g (weight range adapted to actual product weights) |
| Dimensions of Conveyors | L: 250-600 mm
W: 200 or 300 mm (belt widths 160 or 250 mm) |
L: 400-600 mm
W: 400 mm (belt width 350 mm). |
L: 500-1000 mm
W: 400 (belt width 350) |
L: 750 or 1000 mm
W: 500 mm (belt width 450 mm) |
L: 750 or 1000 mm
W: 600 mm (belt width 550 mm) |
| Conveyor Height | 800-950 mm | 800-950 mm | 800-950 mm | ---- | ---- |
| Maximum Throughput Capacity | 250 pcs/min@250 mm long weighing conveyor or 115 prod/min@600 mm long weighing conveyor | 77 prod/min@400 mm long weighing conveyor or 53 prod/min@600 mm long weighing conveyor | 45 prod/min@500 mm long weighing conveyor or 22 prod/min@1000 mm long weighing conveyor | 30 prod/min@750 mm long weighing conveyor or 23 prod/min@1000 mm long weighing conveyor | 18 prod/min@750 mm long weighing conveyor or 14 prod/min@1000 mm long weighing conveyor. |
| Reject | One pusher or blow reject included (maximum 300 g product weight for blow reject) | One pusher reject included | One pusher reject included | No reject inlcuded (reject signal available) | Mo reject inlcuded (reject signal available). With AC motor and inverter |
| MID | MID possible as add-on | MID possible as add-on | MID possible as add-on | ---- | ---- |
