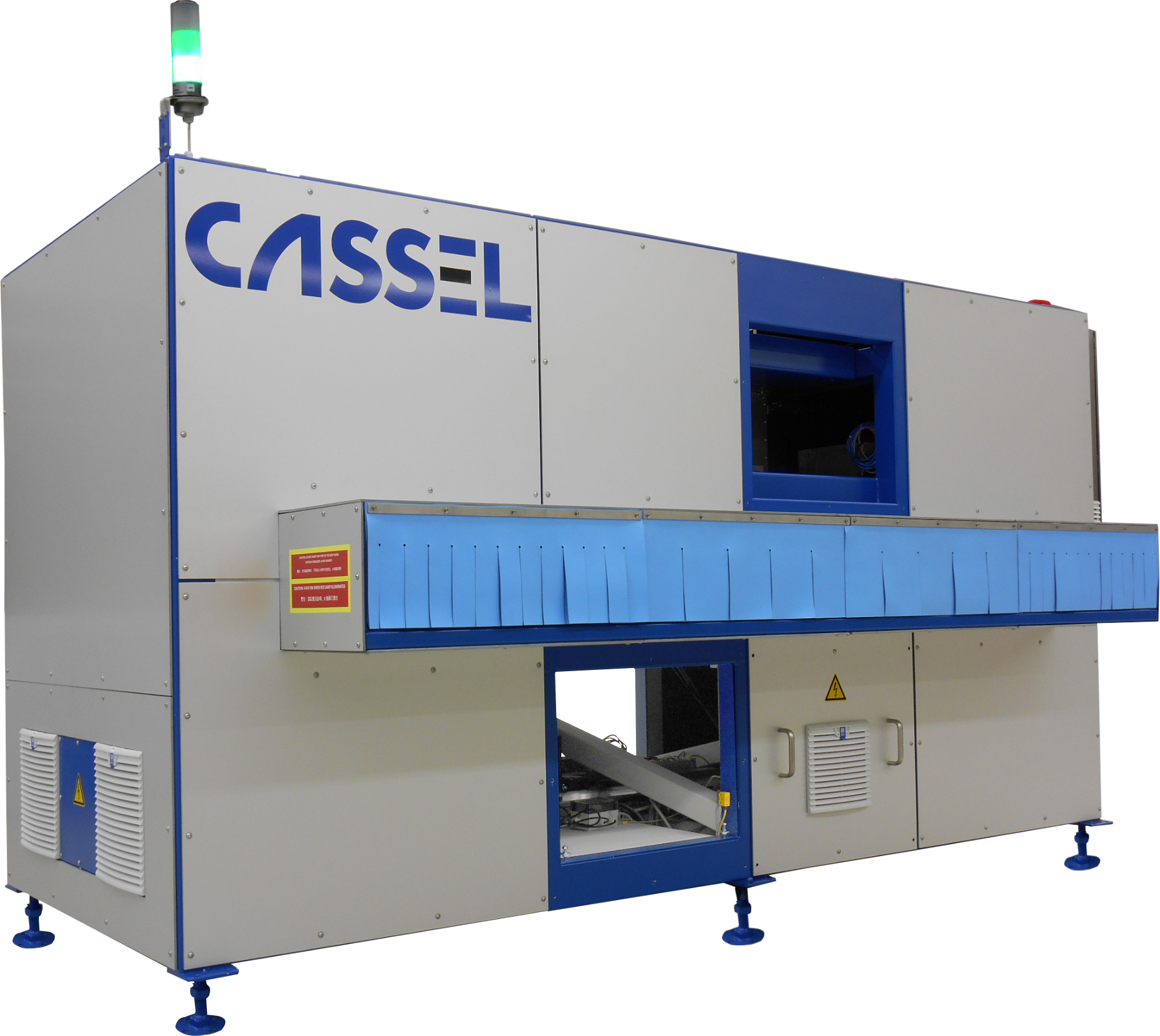

XRAY SHARK® XD BOARD

  • X-ray monitoring for felts, webs, transformer boards or paperboards with maximum product width up to 3400 mm
  • Detects high density materials like metal, ceramic, stone, plastic or glass
  • Up to 5 X-ray generators ensure accurate inspection for the full width of the product
  • Easy operation with autocalibration and clearly arranged functions on 17“ touchscreen
  • XIA software for instant analysis and detection with high accuracy and reliability
XRAY SHARK® XD BOARD

Features

  • Real time detection with coloured contamination analysis
  • Functions for masking of product parts for better detection of contamination
  • Autosaving of inspection data with time and date stamp
  • User-friendly operation in daily business with 255 preset products
  • USB and Ethernet for data transfer
  • product width up to 3,400 mm with height ≤ 30 mm or width up to 3,200 mm with height ≤ 100 mm
  • Easy maintenance and cleaning
  • Built-in remote control and maintenance
  • 24 hours non-stop operation
  • Reliable safety standard - available incl. TÜV-certficate

Function

The XD BOARD x-ray system is specially designed for detecting metal contamination in very thin but flat products. This makes it ideal for fabrics, non-woven fabrics, cardboard or even special cardboard such as transformer cardboard. With the innovative XIA3 software system, parts of the product may be hidden. This proves effective for packaged products, where the actual packaging should not be examined for foreign bodies. Unnecessary false rejection of products can be prevented with the masking function.

Delivery Scope

  • Xray Scanner with image processing software XIA
  • Complete protection against radiation
  • Certified test cards with soda lime glass, ceramics, steel spheres in various diameters

Application

Inspection of particularly thin and wide products
  • Felts, webs
  • Fleece
  • Cardboards or corrugated board
  • Transformer boards

Specifications

Model Name/ID XD140-H2 BOARD (former XPB 1500/2) XD200-H3 BOARD (former XPB 2100/3) XD260-H4 BOARD (former XPB 2700/4) XD320-H5 BOARD (former XPB 3300/5)
X-Ray Source Dual beam x-ray generator with max. 80kV (2x480W), variable in voltage + current Triple beam x-ray generator with max. 80kV (3x480W) 4-beam x-ray generator with max. 80kV (4x480W) 5-beam x-ray generator with max. 80kV (5x480W)
Radiation Leakage 3 µSv/h or less, at 10 cm outside cabinet surfaces using all safety devices 3 µSv/h or less, at 10 cm outside cabinet surfaces using all safety devices 3 µSv/h or less, at 10 cm outside cabinet surfaces using all safety devices 3 µSv/h or less, at 10 cm outside cabinet surfaces using all safety devices
Safety Special product tunnel, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch Special product tunnel, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch Special product tunnel, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch Special product tunnel, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch
X-Ray View 2x top down 3x top down 4x top down 5x top down
Cooling Highly efficient, silent DC filter fans/Optional air conditioner Highly efficient, silent DC filter fans/Optional air conditioner Highly efficient, silent DC filter fans/Optional air conditioner Highly efficient, silent DC filter fans/Optional air conditioner
Housing Finish Frame: mild steel powder-coated (S235JR equals ASTM A36), Panels: Aluminium Frame: mild steel powder-coated (S235JR equals ASTM A36), Panels: Aluminium Frame: mild steel powder-coated (S235JR equals ASTM A36), Panels: Aluminium Frame: mild steel powder-coated (S235JR equals ASTM A36), Panels: Aluminium
Protection Type IP50 (according to IEC 60529), IP54 control cabinet, touch panel and fans IP50 (according to IEC 60529), IP54 control cabinet, touch panel and fans IP50 (according to IEC 60529), IP54 control cabinet, touch panel and fans IP50 (according to IEC 60529), IP54 control cabinet, touch panel and fans
Conveyor Type conveyor not scope of Cassel conveyor not scope of Cassel conveyor not scope of Cassel conveyor not scope of Cassel
Belt Width ---- ---- ---- ----
Scanning Height 90 mm 90 mm 90 mm 90 mm
Scanning Width 1400 mm 2000 mm 2600 mm 3200 mm
Conveyor Speed Conveyor speed by product up to 0.4 m/s Conveyor speed by product up to 0.4 m/s Conveyor speed by product up to 0.4 m/s Conveyor speed by product up to 0.4 m/s
Max Product Dimensions width x height: 1400 x 90 mm width x height: 2000 x 90 mm width x height: 2600 x 90 mm width x height: 3200 x 90 mm
Max Product Weight ---- ---- ---- ----
Available Reject Method reject not scope of Cassel reject not scope of Cassel reject not scope of Cassel reject not scope of Cassel
Product Memory 255 different product set-ups 255 different product set-ups 255 different product set-ups 255 different product set-ups
Display 17“ color-TFT capacitive touchscreen 17“ color-TFT capacitive touchscreen 17“ color-TFT capacitive touchscreen 17“ color-TFT capacitive touchscreen
Inspection Features Auto Calibration, Auto adaption to density distribution, Density, Hard Contrast, Soft Contrast, Masking Technology, SuperContrast, SizeFilter, AutoEdge masking, Images AutoSave/Load, Multi Segment Inspection, Generator Energy by Product, Password protection Auto Calibration, Auto adaption to density distribution, Density, Hard Contrast, Soft Contrast, Masking Technology, SuperContrast, SizeFilter, AutoEdge masking, Images AutoSave/Load, Multi Segment Inspection, Generator Energy by Product, Password protection Auto Calibration, Auto adaption to density distribution, Density, Hard Contrast, Soft Contrast, Masking Technology, SuperContrast, SizeFilter, AutoEdge masking, Images AutoSave/Load, Multi Segment Inspection, Generator Energy by Product, Password protection Auto Calibration, Auto adaption to density distribution, Density, Hard Contrast, Soft Contrast, Masking Technology, SuperContrast, SizeFilter, AutoEdge masking, Images AutoSave/Load, Multi Segment Inspection, Generator Energy by Product, Password protection
In/Outputs Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals)
Data Transfer and Reporting Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick
Weight estimated 2.4 t estimated 2.8 t estimated 3.5 t estimated 4.2 t
Power Supply 3ph, 400 VAC +/- 10%, 50/60 Hz w/o cooling and transport 2.0 kW 3ph, 400 VAC +/- 10%, 50/60 Hz w/o cooling and transport 2.5 kW 3ph, 400 VAC +/- 10%, 50/60 Hz w/o cooling and transport 3.0 kW 3ph, 400 VAC +/- 10%, 50/60 Hz w/o cooling and transport 3.5 kW
Compressed Air Supply ---- ---- ---- ----
Environmental Conditions 10°C to +30°C / 50°F to 86°F, with relative humidity max 90%, non-condensing, external cooling device recommended/needed 10° to +30°C, with relative humidity max 90%, non-condensing(external cooling device recommendend/needed) 10° to +30°C/ 50°F to 86°F, with relative humidity max 90%, non-condensing(external cooling device recommendend/needed) 10° to +30°C/ 50°F to 86°F, with relative humidity max 90%, non-condensing(external cooling device recommendend/needed)
Conformity CE, compliant to german x-ray regulations, specific adaptation for other countries CE, compliant to german x-ray regulations, specific adaptation for other countries CE, compliant to german x-ray regulations, specific adaptation for other countries CE, compliant to german x-ray regulations, specific adaptation for other countries
X-Ray Detector Low noise 816mm line scan CCD, diode pitch 0.8 mm Low noise 816mm line scan CCD, diode pitch 0.8 mm Low noise 816mm line scan CCD, diode pitch 0.8 mm Low noise 816mm line scan CCD, diode pitch 0.8 mm
